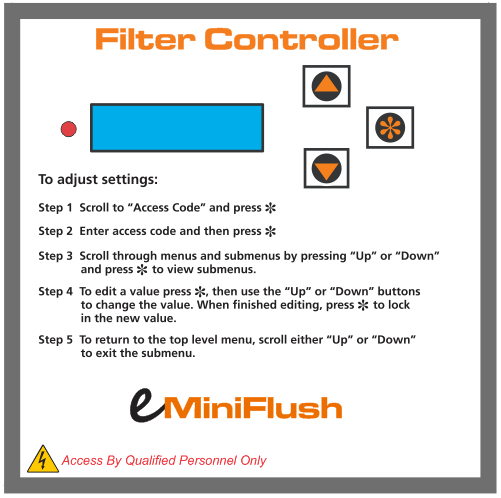

The Five Filter Flush Controller is designed to automatically back flush filters on either a time, via an external input or optional differential pressure sensor. The unit is supplied in a PVC IP 65 enclosure which includes an alpha numeric display and a 3 button keypad to allow the user to implement an extensive array of options typically required by existing filter manufacturers

Power input: 12vDC, 24vAC, or 240vAC
Input Power Frequency: AC 48-62Hz
Maximum power output: 40 watt
Temperature Range: -5 to 60 degC
Relative Humidity Range: 0 to 90% non-condensing
Enclosure Size: 150mm X 150mm X 80mm
Enclosure Rating: IP65
Output Relay: 3 amp rating
