Fixed Speed Pump Systems
FSB
Model: FSB
Single Phase - DOL - Pump Control Systems
Summary
Tech Specs
Ask a Question

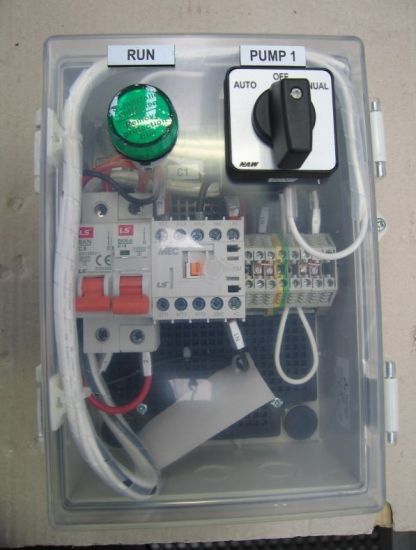

The FSB is a simple starter panel designed for DOL operation of small 240VAC single phase motors/pumps.
Features:
* Suitable for Single Pump Applications.
* Grey plastic (ABS) enclosure.
* IP55 ingress protection as standard.
* Includes AOM switch for local and remote activation.
* Run indicator light.
* Automatic operation via the pressure/remote switch input.
* D Curve Motor circuit breaker.
* Includes as built wiring diagram.
Notes:
* The standard configuration should not be used in direct sunlight, enquire for other options.
* Maximum ambient operating temperature: 50C, higher temperatures available on request.
* Maximum relative humidity: 95%, non-condensing.
* Designed for single phase 230/250 VAC supply including neutral.
* Maximum pump size - 2.2KW, larger available on request.
* The pressure / remote switch input has an LV source (240 VAC) and should not be used on float applications. Other options are available to allow floats to be used.
* Suitable for Single Pump Applications.
* Grey plastic (ABS) enclosure.
* IP55 ingress protection as standard.
* Includes AOM switch for local and remote activation.
* Run indicator light.
* Automatic operation via the pressure/remote switch input.
* D Curve Motor circuit breaker.
* Includes as built wiring diagram.
Notes:
* The standard configuration should not be used in direct sunlight, enquire for other options.
* Maximum ambient operating temperature: 50C, higher temperatures available on request.
* Maximum relative humidity: 95%, non-condensing.
* Designed for single phase 230/250 VAC supply including neutral.
* Maximum pump size - 2.2KW, larger available on request.
* The pressure / remote switch input has an LV source (240 VAC) and should not be used on float applications. Other options are available to allow floats to be used.
The FSB is a simple starter panel designed for DOL operation of small 240VAC single phase motors/pumps. In Auto an external switched signal is required to start and stop the pump. An indicator light on the panel is provided to show when the pump is running. Most states and territories in Australia place limit on the maximum power consumed by a motor at start up. In general terms this equates to a maximum size of 2.2KW for most 240VAC single phase motors/pumps.
